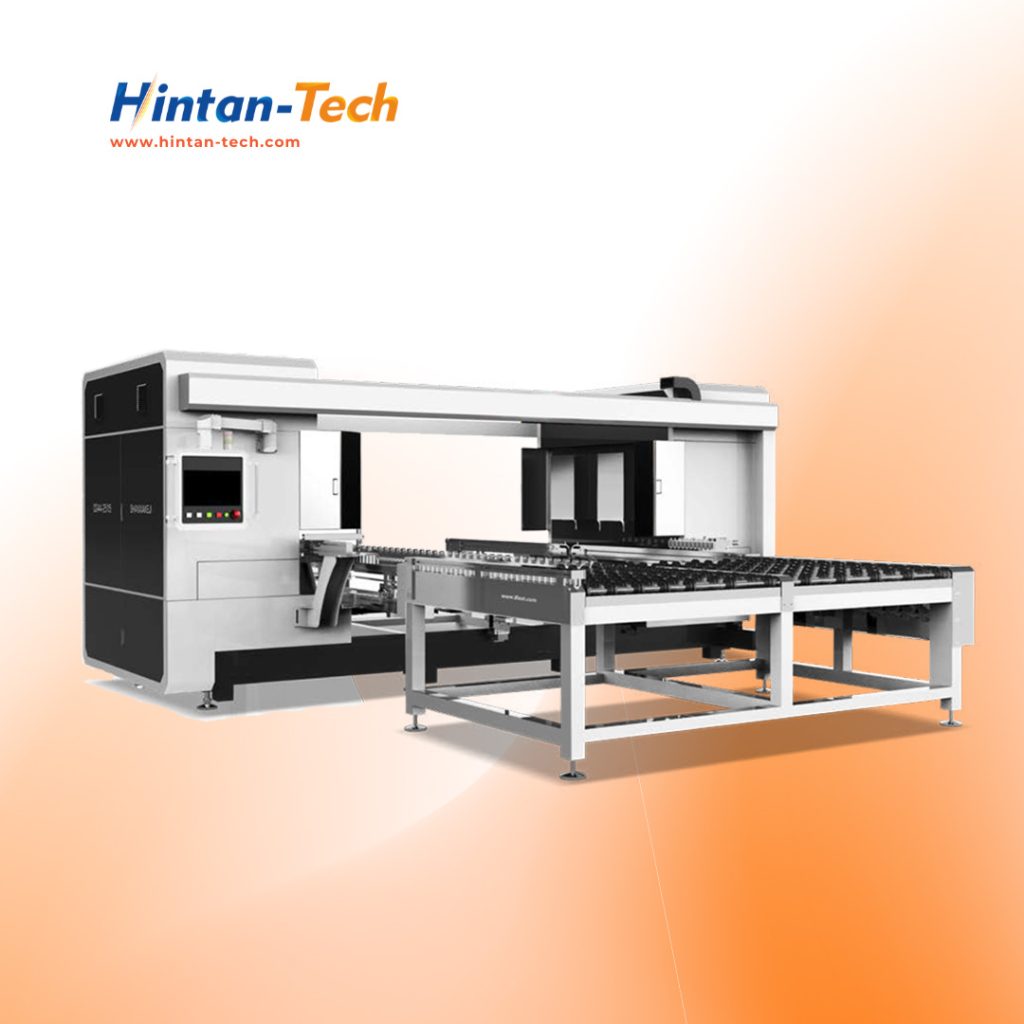

Automatic CNC Glass Corner Grinding Machine
Automatic CNC Glass Corner Grinding Machine – Precision Edging & Polishing for Architectural, Furniture, and Appliance Glass
Key Applications
✅ Ideal for:
Architectural Glass: Fireproof glass, curtain walls, and structural panels.
Home & Furniture: Shower/bathroom glass, refrigerator glass, tabletop glass, and decorative furniture edges.
Appliance & Electronics: Stove tops, range hood panels, solar glass, and electronic appliance glass.
Industrial Materials: Sintered stone processing, precision-edged glass for machinery.
✅ Batch/Bulk Order Efficiency:
Optimized for high-volume production of uniform glass components with minimal downtime.
Core Features & Advantages
Precision Automation:
Camera Positioning System: Automatically corrects glass placement errors for ±0.05mm accuracy.

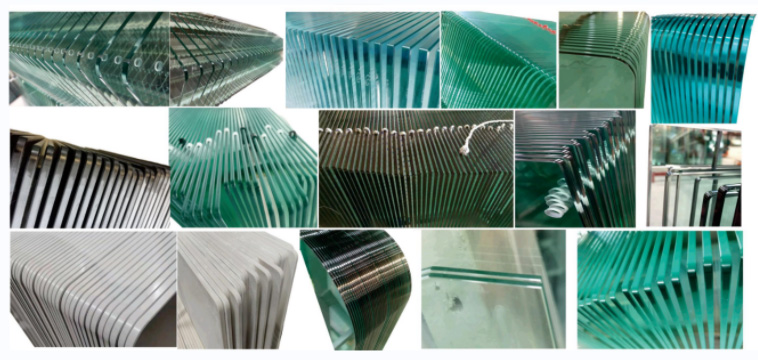

Polishing Compensation Technology: Ensures flawless large rounded corners (R2–R80mm) with consistent finish.
Smart Integration:
Seamlessly connects with double edgers for inline processing.
Automatic Wheel Repair: Self-adjusts polishing wheels when grooves deepen, extending tool life.
Flexible Production:
Handles glass sizes from 250×380mm to 2500×1500mm.
Shuttle Conveyor Option: Accelerates chamfering for small glass pieces.
echnical Specifications
| Model | CG44-1-1000 | CG44-1-1600 | CG44-1-2500/3000 |
|---|---|---|---|
| Spindle Qty | 4 Groups | 4 Groups | 4 Groups |
| Glass Size | 250×380–1200×1000mm | 250×500–1600×1000mm | 250×500–2500×1500mm |
| Corner Radius | R2–R40mm (R60/R80mm optional) | R2–R40mm (R60/R80mm optional) | R2–R40mm (R60/R80mm optional) |
| Precision | ±0.05mm | ±0.05mm | ±0.05mm |
| Weight | 4,800kg | 5,000kg | 5,300kg |
| Total Power | 23KW | 24KW | 25KW |
| Dimensions | 3600×3500×2200mm | 3900×3800×2200mm | 4100×4700×2200mm |
Why Choose Hintan-Tech’s Corner Grinding Machine?
High-Speed Polishing: Unique compensation system maximizes large round corner polishing effects.
Durability: Robust construction for heavy-duty industrial use.
Smart Manufacturing: Compatible with Industry 4.0 workflows for automated glass processing lines.
